Turnstiles
Secure, efficient entry systems that control and streamline pedestrian flow, ideal for offices, transit hubs, and event venues.

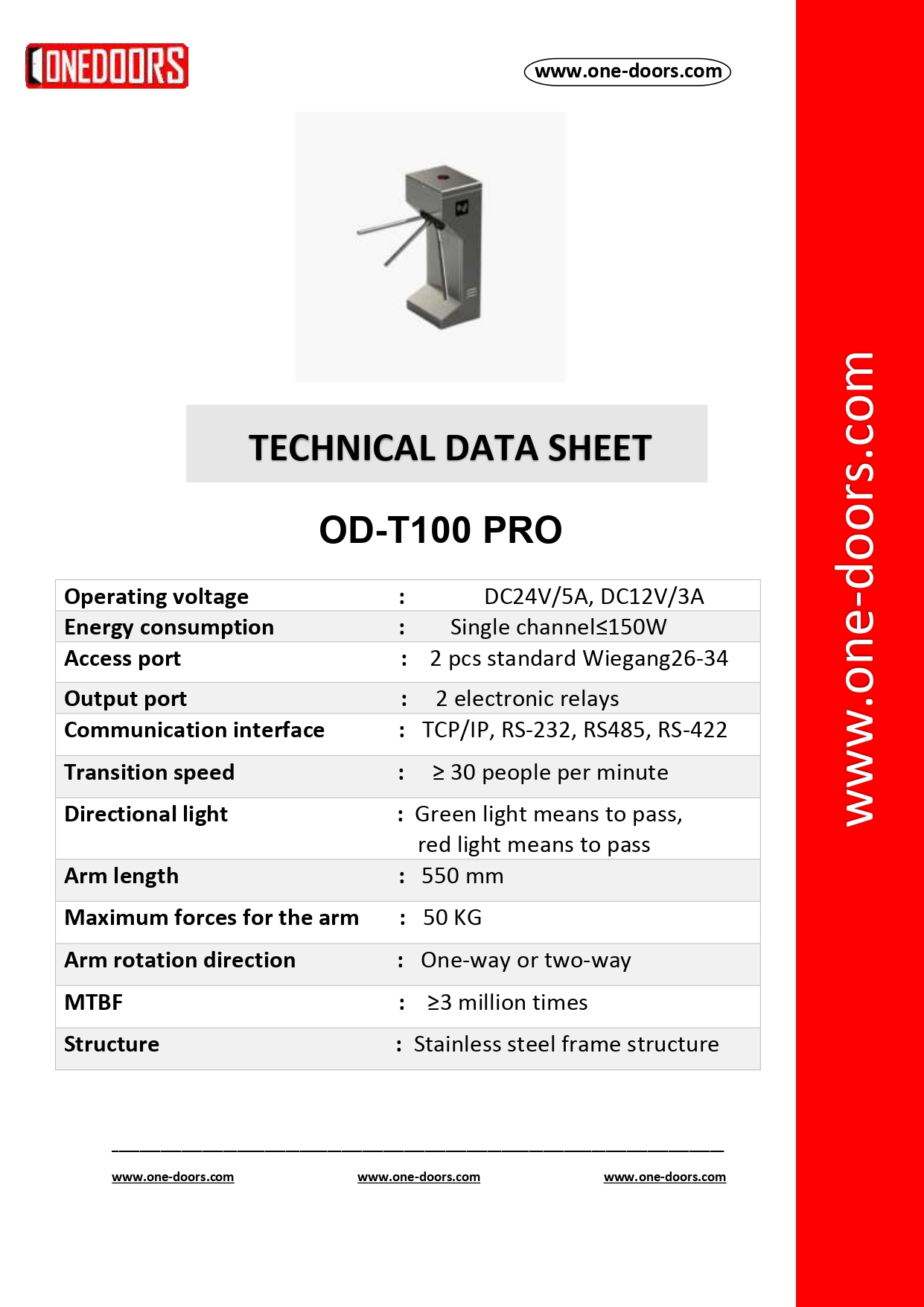

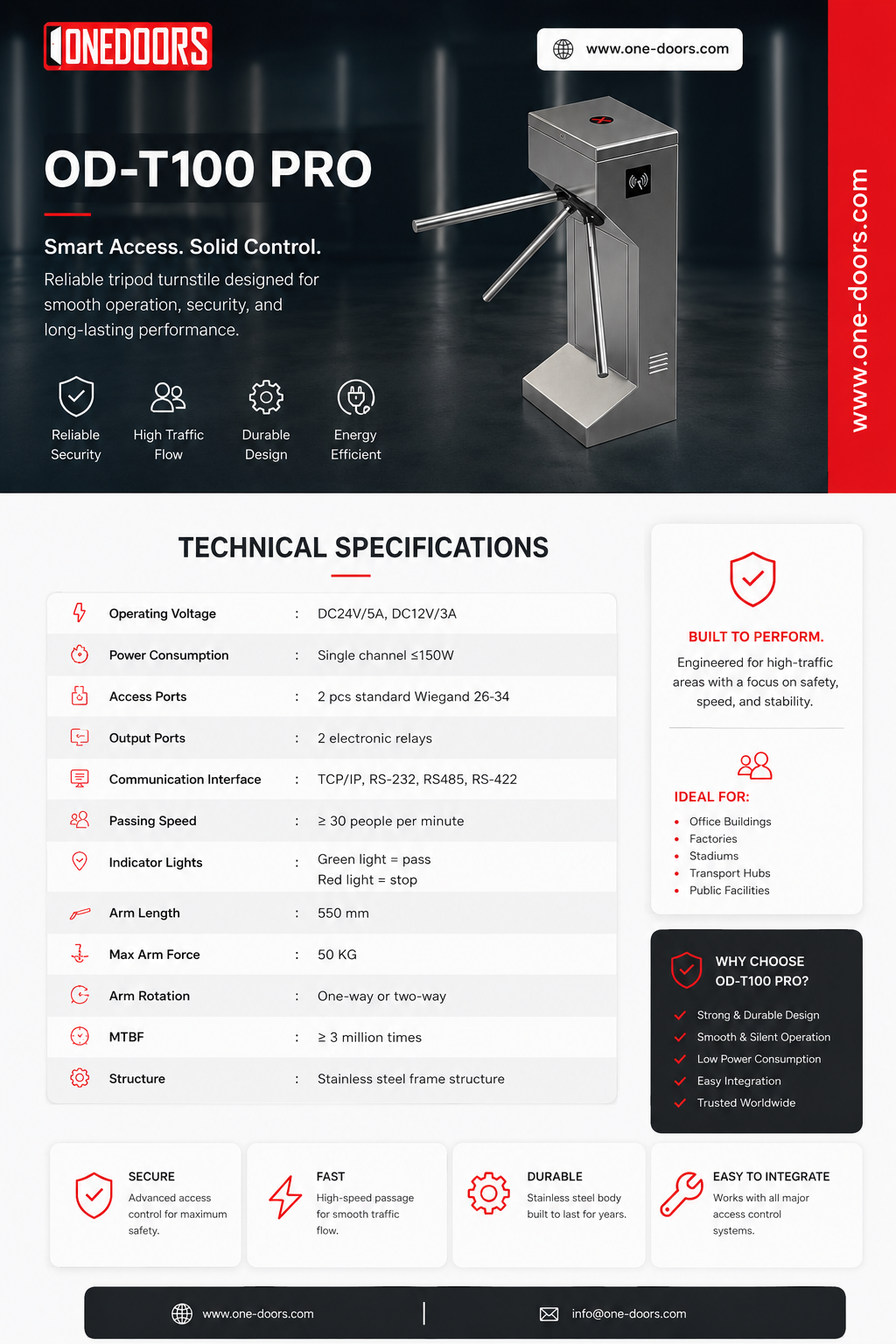

OD-T100 PRO
Operating voltage : DC24V/5A, DC12V/3A
Energy consumption : Single channel≤150W
Access port : 2 pcs standard Wiegang26-34
Output port : 2 electronic relays
Communication interface : TCP/IP, RS-232, RS485, RS-422
Transition speed : ≥ 30 people per minute
Directional light : Green light means to pass, red light means to pass
Arm length : 550 mm
Maximum forces for the arm : 50 KG
Arm rotation direction : One-way or two-way
MTBF : ≥3 million times
Structure : Stainless steel frame structure

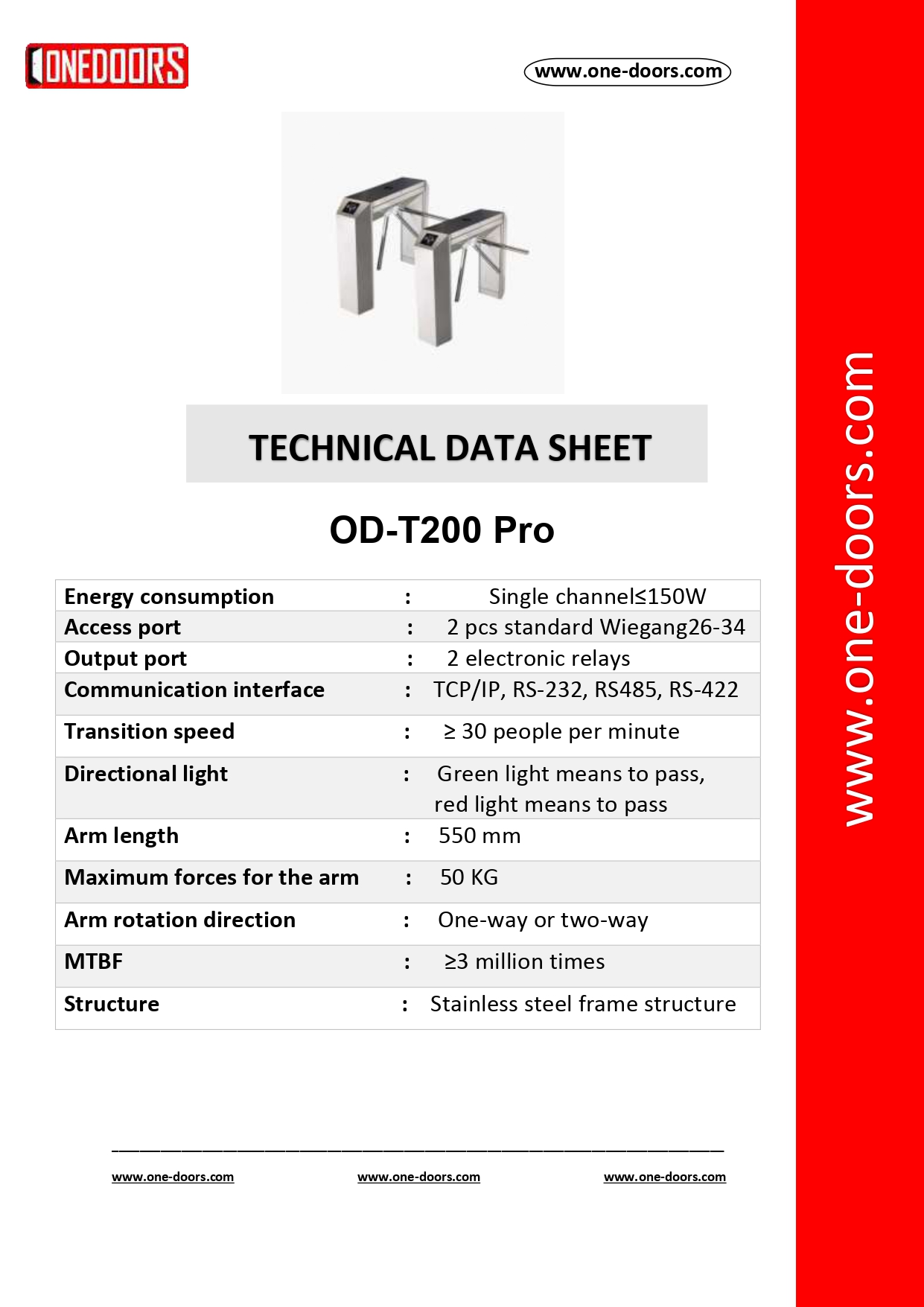

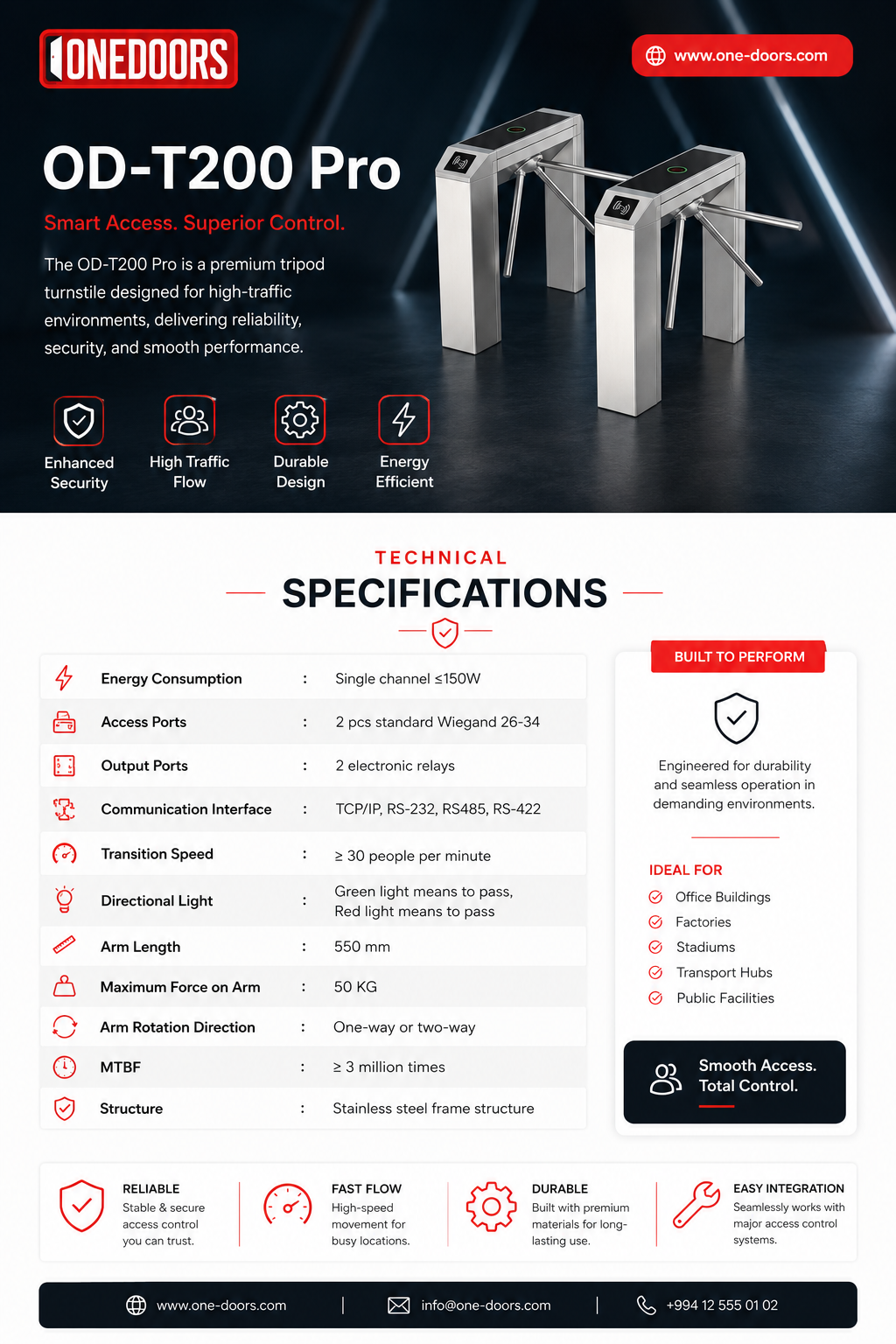

OD-T200 Pro
Energy consumption : Single channel≤150W
Access port : 2 pcs standard Wiegang26-34
Output port : 2 electronic relays
Communication interface : TCP/IP, RS-232, RS485, RS-422
Transition speed : ≥ 30 people per minute
Directional light : Green light means to pass, red light means to pass
Arm length : 550 mm
Maximum forces for the arm : 50 KG
Arm rotation direction : One-way or two-way
MTBF : ≥3 million times
Structure : Stainless steel frame structure

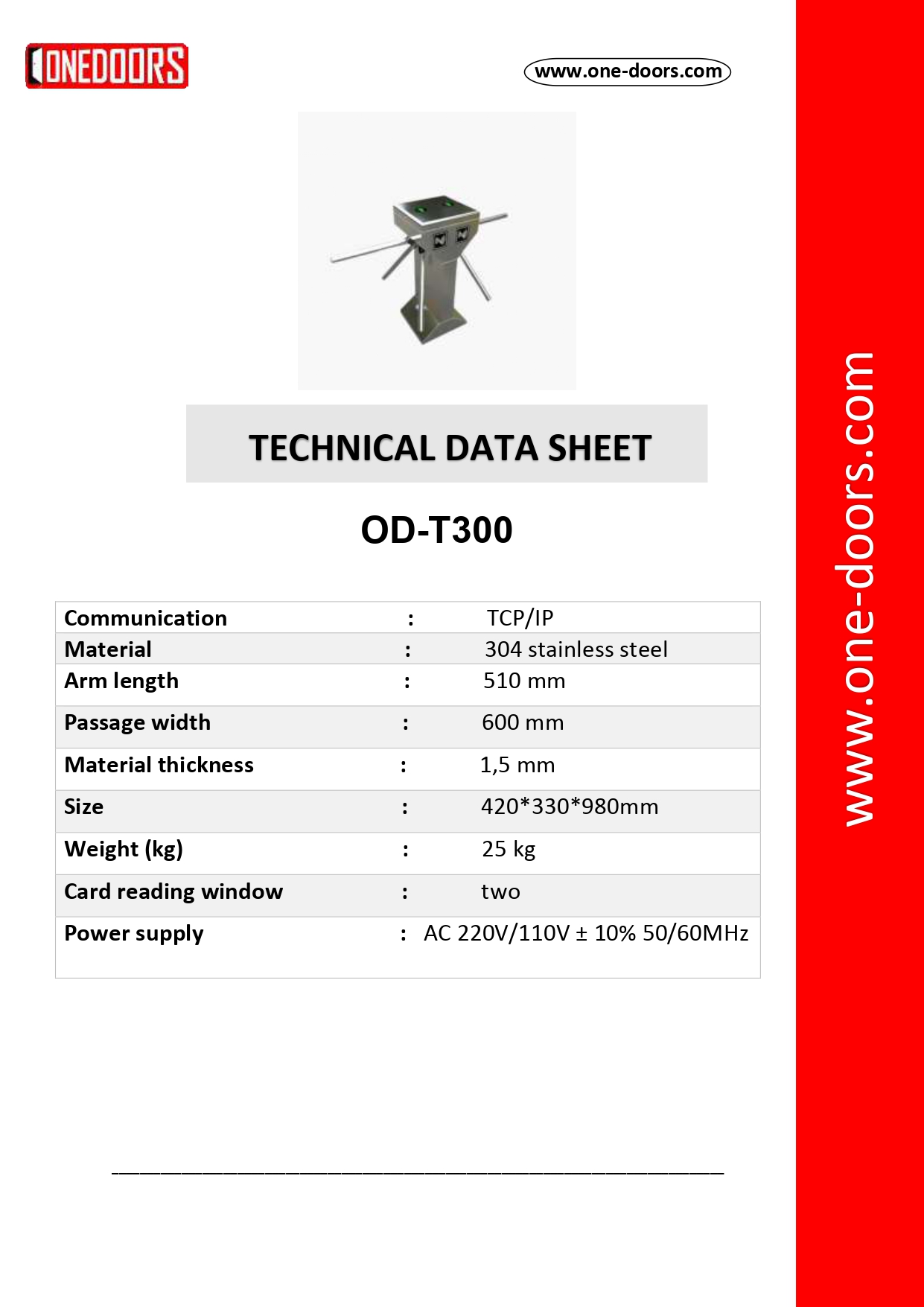

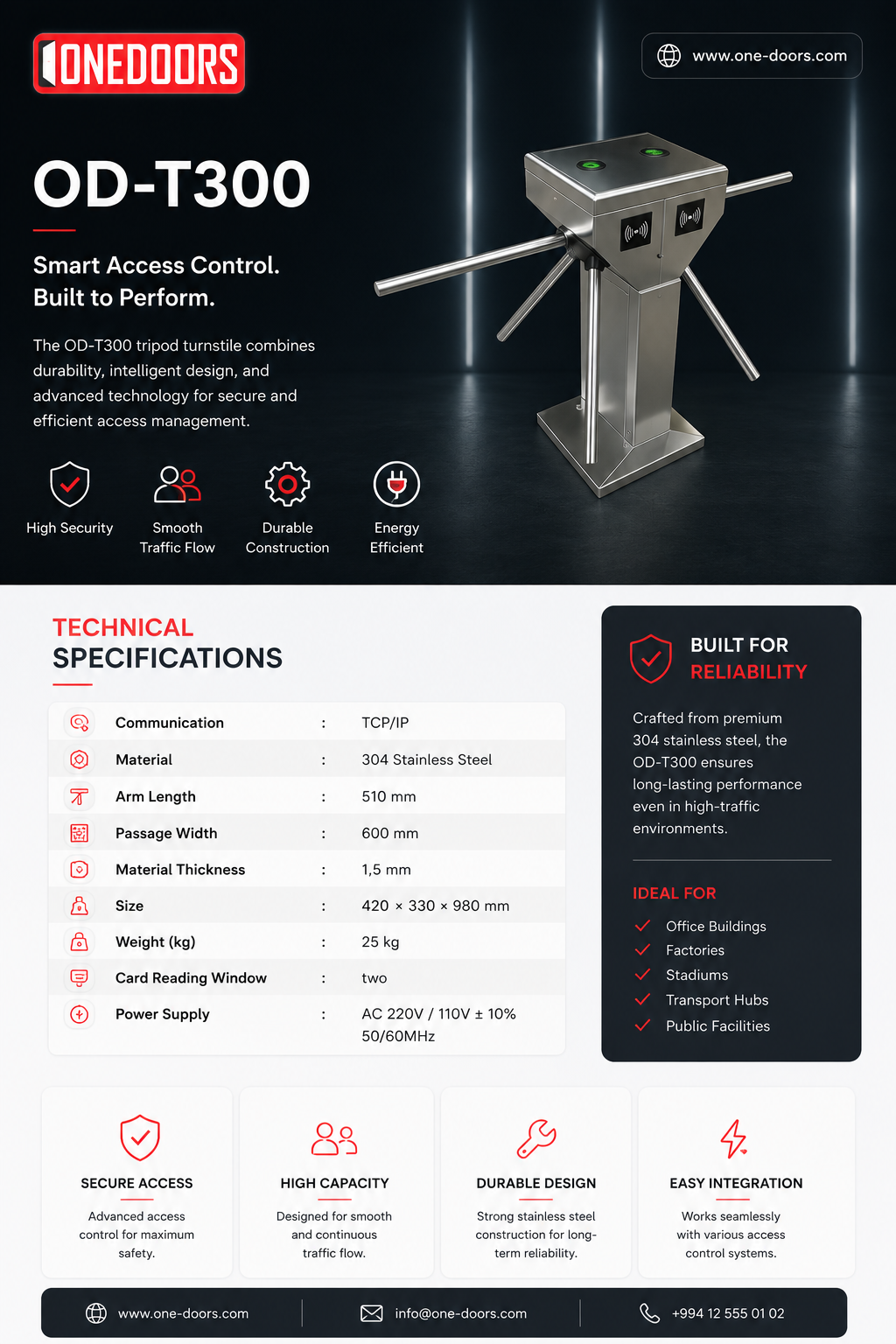

OD-T300
Communication : TCP/IP
Material : 304 stainless steel
Arm length : 510 mm
Passage width : 600 mm
Material thickness : 1,5 mm
Size : 420*330*980mm
Weight (kg) : 25 kg
Card reading window : two
Power supply : AC 220V/110V ± 10% 50/60MHz

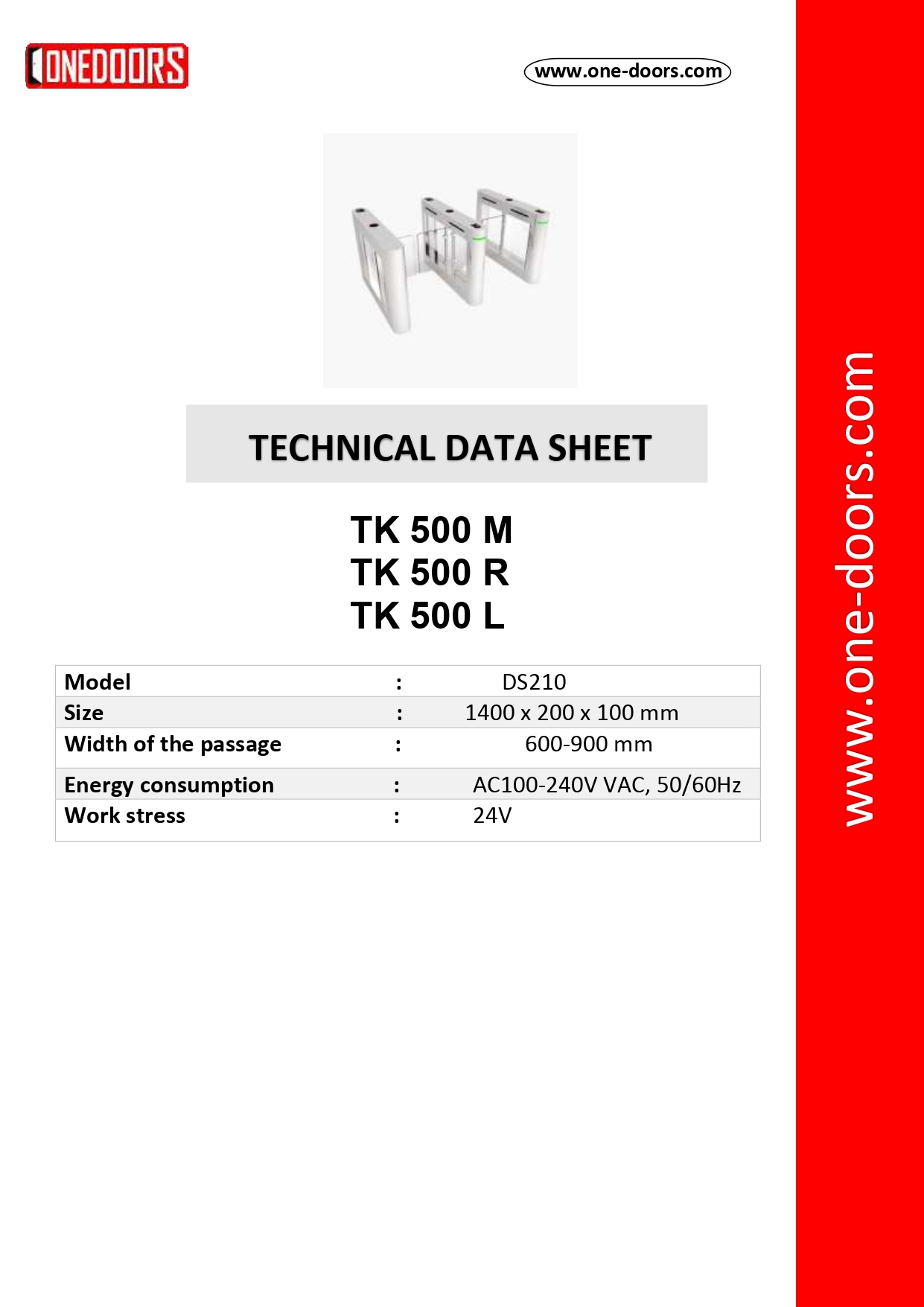

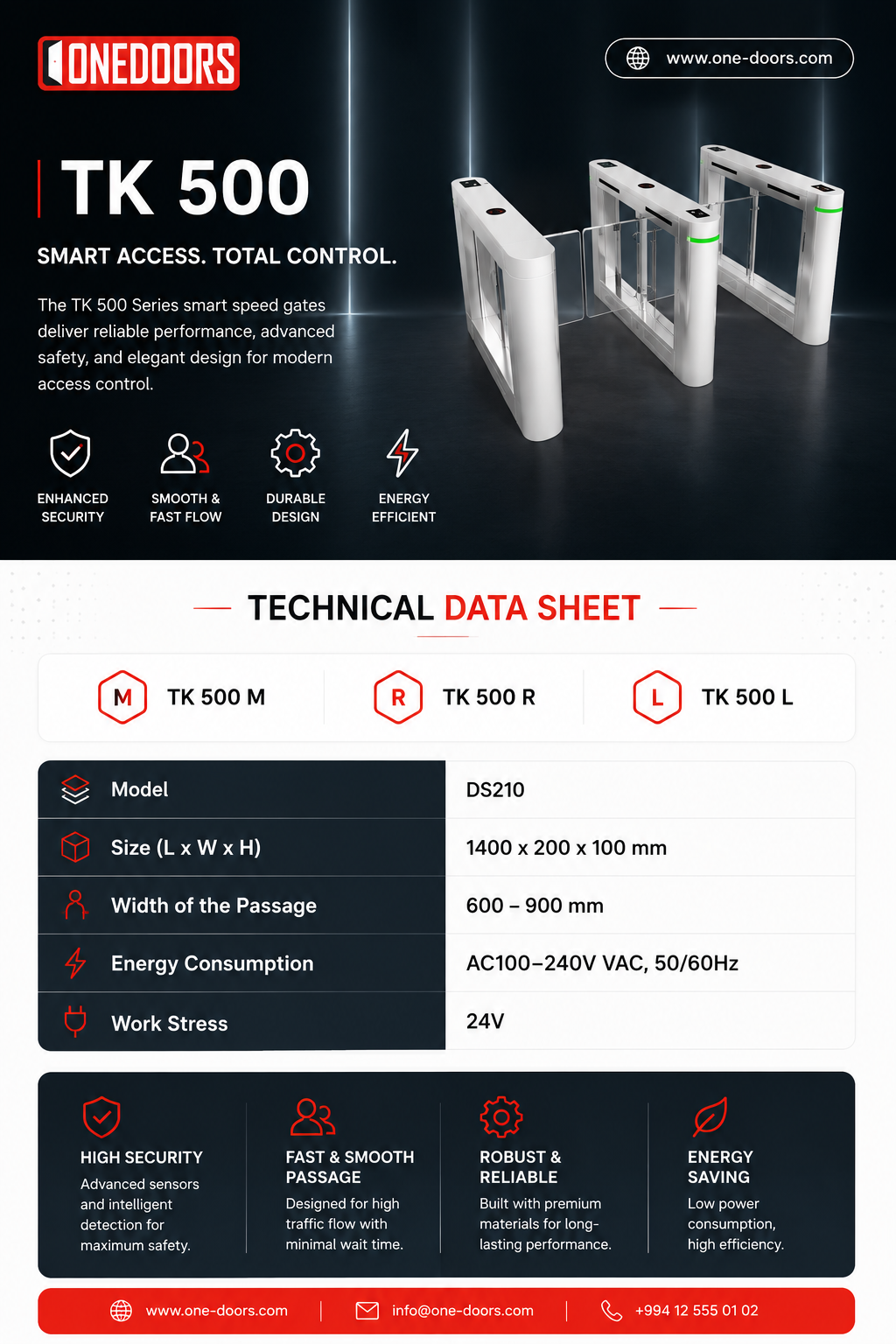

TK 500 M, TK 500 R, TK 500 L
Model : DS210
Size : 1400 x 200 x 100 mm
Width of the passage : 600-900 mm
Energy consumption : AC100-240V VAC, 50/60Hz
Work stress : 24V
